You reach the sign shown at a quiet intersection. What does it require even when no traffic is visible?
Correct answer: A complete stop before proceeding when safe.
STOP requires a full stop, not merely a reduction in speed. Use the stop line, or the appropriate crosswalk or intersection stopping position, then yield before proceeding.
Source: FHWA MUTCD 2009, Figure 2b_01; sign R1-1: Stop; official illustration and description checked September 15, 2026. ↗
What instruction does this triangular sign give as you approach crossing traffic?
Correct answer: Slow down and give way, stopping if necessary.
YIELD means give the right-of-way to traffic in the intersection or road you are entering. Slow enough to assess the situation and stop when needed.
Source: FHWA MUTCD 2009, Figure 2b_01; sign R1-2: Yield; official illustration and description checked September 15, 2026. ↗
This sign faces you at a roadway opening. Which action follows its instruction?
Correct answer: Do not use that opening to enter the roadway.
DO NOT ENTER prohibits entry from the direction you are approaching. An empty roadway does not cancel the restriction; find a lawful entrance.
Source: FHWA MUTCD 2009, Figure 2b_11; sign R5-1: Do Not Enter; official illustration and description checked September 15, 2026. ↗
You see this sign facing your vehicle after a turn. What danger does it identify?
Correct answer: You are traveling toward opposing traffic in the wrong direction.
WRONG WAY warns that you have entered against the permitted traffic direction. Correct the mistake as quickly and safely as possible; do not continue farther into oncoming traffic.
Source: FHWA MUTCD 2009, Figure 2b_11; sign R5-1a: Wrong Way; official illustration and description checked September 15, 2026. ↗
Which maneuver is ruled out by this symbol?
Correct answer: Turning left.
The red slash cancels the left-turn movement shown by the arrow. It does not itself prohibit going straight or establish priority over pedestrians.
Source: FHWA MUTCD 2009, Figure 2b_04; sign R3-2: No Left Turn; official illustration and description checked September 15, 2026. ↗
A driver wants to turn in the direction crossed out on this sign. What should the driver do?
Correct answer: Continue by a permitted movement instead of turning right.
This is a NO RIGHT TURN regulatory sign. The crossed-out arrow prohibits the maneuver; it is not a yellow warning sign about the road bending.
Source: FHWA MUTCD 2009, Figure 2b_04; sign R3-1: No Right Turn; official illustration and description checked September 15, 2026. ↗
What movement does this sign prohibit?
Correct answer: Turning around to travel in the opposite direction.
The U-shaped arrow identifies a U-turn. The sign prohibits that reversal of direction, rather than every possible movement involving a leftward steer.
Source: FHWA MUTCD 2009, Figure 2b_04; sign R3-4: No U-Turn; official illustration and description checked September 15, 2026. ↗
This sign stands at a roadway obstruction. On which side should traffic pass it?
Correct answer: On the right side of the obstruction.
KEEP RIGHT directs you around the indicated obstruction or road feature on its right. It is not an instruction to leave the roadway.
Source: FHWA MUTCD 2009, Figure 2b_10; sign R4-7: Keep Right; official illustration and description checked September 15, 2026. ↗
This sign applies to the lane you are using at the intersection. Which movement is permitted from that lane?
Correct answer: A left turn only.
The left arrow with ONLY restricts the lane to a left turn. Select a different lawful lane in advance if you need to continue straight.
Source: FHWA MUTCD 2009, Figure 2b_04; sign R3-5: Lane Control; official illustration and description checked September 15, 2026. ↗
What must a driver in the lane governed by this sign plan to do?
Correct answer: Continue straight through the intersection.
The straight arrow and ONLY identify a through-only lane. A turn signal does not create permission to turn from it.
Source: FHWA MUTCD 2009, Figure 2b_04; sign R3-5a: Lane Control; official illustration and description checked September 15, 2026. ↗
How does this yellow sign differ from the red sign it pictures?
Correct answer: It warns that a stop sign is ahead.
STOP AHEAD gives advance notice so you can prepare to stop at the upcoming controlled location. The yellow warning sign itself is not the intersection stop sign.
Source: FHWA MUTCD 2009, Figure 2c_06; sign W3-1: Stop Ahead; official illustration and description checked September 15, 2026. ↗
What should you expect beyond this warning sign?
Correct answer: A traffic signal that may require you to stop.
The pictured signal warns of traffic lights ahead. It does not display the current signal phase or grant permission to proceed.
Source: FHWA MUTCD 2009, Figure 2c_06; sign W3-3: Signal Ahead; official illustration and description checked September 15, 2026. ↗
What traffic change does the joining branch on this sign warn about?
Correct answer: Traffic entering from another road will merge into the roadway.
The joining branch represents merging traffic. Watch for vehicles entering and allow room for a safe merge; do not confuse it with the added-lane symbol.
Source: FHWA MUTCD 2009, Figure 2c_08; sign W4-1: Merge; official illustration and description checked September 15, 2026. ↗
What does this sign tell you about traffic arriving from the right?
Correct answer: It enters a separate added lane rather than immediately merging into yours.
An added lane continues beside the through lane. This is different from a merge, although drivers must still check traffic before making any later lane change.
Source: FHWA MUTCD 2009, Figure 2c_08; sign W4-3: Added Lane; official illustration and description checked September 15, 2026. ↗
You are traveling in the right lane when this sign appears. What should you prepare to do?
Correct answer: Merge left safely because the right lane ends.
The right side tapers away, showing the right lane ending. Check traffic and merge left when safe, yielding to vehicles already in that lane.
Source: FHWA MUTCD 2009, Figure 2c_08; sign W4-2: Lane Ends/Merge Left; official illustration and description checked September 15, 2026. ↗
Which change in the road layout is shown here?
Correct answer: Opposing directions will be separated by a median or barrier ahead.
The divider is at the far end of the symbol: a divided section begins ahead. Keep to the proper side of the median.
Source: FHWA MUTCD 2009, Figure 2c_05; sign W6-1: Begin Divided Roadway; official illustration and description checked September 15, 2026. ↗
What should you expect after passing this warning?
Correct answer: Two-way traffic without the median or barrier that separated it.
The divider ends in the direction of travel. Be ready for opposing traffic on an undivided roadway, not for the end of all oncoming traffic.
Source: FHWA MUTCD 2009, Figure 2c_05; sign W6-2: End Divided Roadway; official illustration and description checked September 15, 2026. ↗
Rain begins as you approach the road section marked by this sign. What concern should guide your driving?
Correct answer: The pavement can become unusually slippery when wet.
The tracks depict skidding, not the route of the road. Reduce speed as conditions require and use smooth steering, braking and acceleration.
Source: FHWA MUTCD 2009, Figure 2c_06; sign W8-5: Slippery When Wet; official illustration and description checked September 15, 2026. ↗
What lies ahead according to the curved arrow shown?
Correct answer: The road curves to the left.
This yellow warning describes the road alignment ahead. Slow to an appropriate speed before the curve; it is not a white lane-use command or a turn prohibition.
Source: FHWA MUTCD 2009, Figure 2c_01; sign W1-2: Curve; official illustration and description checked September 15, 2026. ↗
Compared with a gentle curve warning, what does this sharply bent arrow indicate?
Correct answer: A sharp left turn in the road ahead.
The angular arrow warns of a sharp change in the road direction. Reduce speed before reaching it and follow any posted advisory information.
Source: FHWA MUTCD 2009, Figure 2c_01; sign W1-1: Turn; official illustration and description checked September 15, 2026. ↗

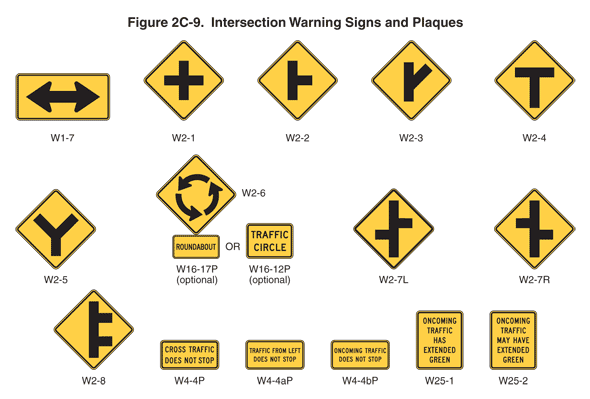

At the junction warned about by this sign, what happens to the road you are following?
Correct answer: It ends; you must turn left or right.
The stem of the T ends at the crossbar. Prepare to choose a turn, slow down and obey the actual controls and right-of-way rules at the junction.
Source: FHWA MUTCD 2009, Figure 2c_09; sign W2-4: T Intersection Ahead; official illustration and description checked September 15, 2026. ↗
What feature should you watch for on the side indicated by this sign?
Correct answer: A side road joining from the right.
The branch indicates a side-road intersection. Watch for traffic entering or crossing your path; this symbol does not order you to turn.
Source: FHWA MUTCD 2009, Figure 2c_09; sign W2-2: Side Road Ahead; official illustration and description checked September 15, 2026. ↗
Which type of intersection is this sign warning you to approach?
Correct answer: A roundabout or circular intersection.
The circular arrows warn of a roundabout ahead. Reduce speed and follow the roundabout entry, lane and right-of-way rules.
Source: FHWA MUTCD 2009, Figure 2c_09; sign W2-6: Roundabout Ahead; official illustration and description checked September 15, 2026. ↗
What does this round sign tell you before you reach the marked location?
Correct answer: A railroad crossing is ahead; watch for trains and crossing controls.
The round sign is advance warning of a railroad crossing. It is different from the crossbuck at the tracks and does not give traffic priority over trains.
Source: FHWA MUTCD 2009, Figure 8b_04; sign W10-1: Railroad Crossing; official illustration and description checked September 15, 2026. ↗
What should the school-related symbol on this sign prompt you to watch for?
Correct answer: Children walking or crossing near the school area.
The five-sided school sign calls attention to children. Slow down and watch carefully; any separate speed or crossing-location plaque adds its own information.
Source: FHWA MUTCD 2009, Figure 7b_01; sign S1-1: School Crossing; official illustration and description checked September 15, 2026. ↗
What does this yellow symbol warn you to watch for?
Correct answer: Pedestrians near or crossing the roadway.
The walking figure is a warning of pedestrian activity. A red circle and slash would indicate a prohibition instead.
Source: FHWA MUTCD 2009, Figure 2c_11; W11-2: Pedestrian warning. National sign recognition, not a state-exclusive rule; checked September 28, 2026. ↗

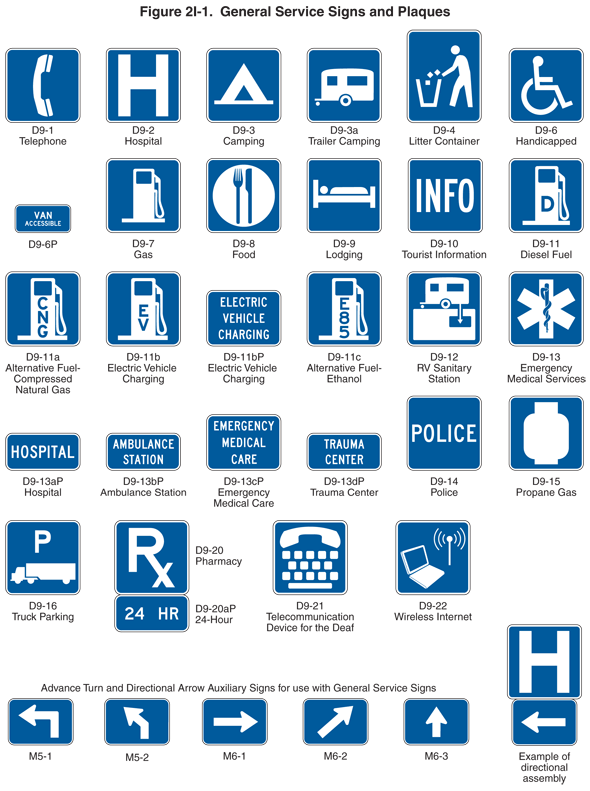

Which service is identified by the white letter on this blue sign?
Correct answer: A hospital.
The H identifies hospital service. Accompanying direction signs show how to reach it; it does not assign a traffic lane.
Source: FHWA MUTCD 2009, Figure 2i_01; D9-2: Hospital. National sign recognition, not a state-exclusive rule; checked September 28, 2026. ↗
What does this pennant identify?
Correct answer: The start of a no-passing zone.
The pennant marks a no-passing zone. It does not provide permission to overtake merely because the view beyond it appears open.
Source: FHWA MUTCD 2009, Figure 2c_08; W14-3: No Passing Zone. National sign recognition, not a state-exclusive rule; checked September 28, 2026. ↗
What does the number on this white sign identify?
Correct answer: The posted maximum speed in miles per hour.
A white SPEED LIMIT sign states the maximum speed for ideal conditions. The pictured 50 is a sign example, not an Oregon statewide default; conditions may require a lower speed.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 8, physical PDF page 16: Regulatory Signs — Speed Limit. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What road layout does this cross-shaped symbol warn about?
Correct answer: Another road crosses the highway ahead.
The crossing lines represent a crossroad. Watch for cross traffic and for the actual signs or signals controlling the intersection.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 11, physical PDF page 19: Warning Signs — Crossroad. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What should you expect beyond this single winding-arrow sign?
Correct answer: A series of curves in the road.
The arrow traces changes in road alignment. It differs from the slippery-road sign, which shows a vehicle and skidding tracks.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 11, physical PDF page 19: Warning Signs — Winding Road. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
When posted beneath a curve warning, what does this yellow plaque communicate?
Correct answer: An advisory speed for the warned condition.
A yellow advisory-speed plaque supplements a warning. It differs from a white SPEED LIMIT sign and never overrides the need to slow for conditions.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 12, physical PDF page 20: Warning Signs — Advisory Speed. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What possible hazard is represented by this animal silhouette?
Correct answer: Deer entering or crossing the road.
The sign warns of animal crossings. Watch the roadside as well as the lane; it does not mark a place to stop and feed animals.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 12, physical PDF page 20: Warning Signs — Deer. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What is the main purpose of a green sign of this kind?
Correct answer: To provide destination and route guidance.
Green guide signs provide directions and distances to destinations or routes. The example place names in this shared artwork are not Oregon destination claims.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 13, physical PDF page 21: Route, Guide and Informational Signs. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗

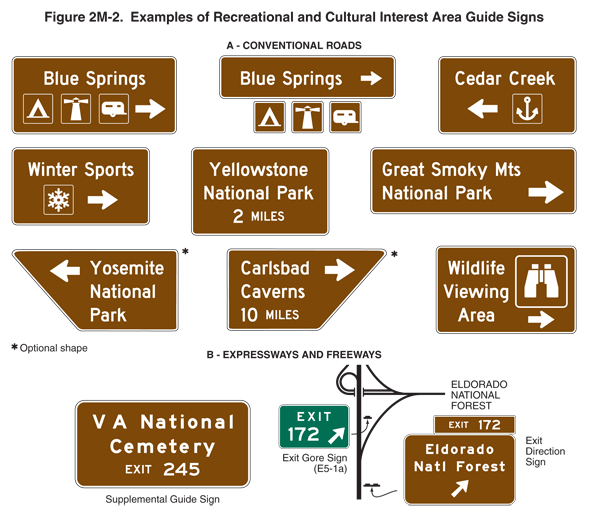

What type of destination does the brown background commonly identify?
Correct answer: A recreational or scenic-area destination.
Brown signs identify public recreation or scenic guidance. The shared example illustrates the color family, not a particular Oregon destination.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 13, physical PDF page 21: Historic, Cultural and Recreational Signs. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What roadway condition do these opposing arrows warn about?
Correct answer: Traffic travels in opposite directions on this road.
The opposed arrows warn of two-way traffic. Keep to the proper side; the sign does not identify two lanes moving together.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 11, physical PDF page 19: Warning Signs — Two-Way Traffic Ahead. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What kind of information is normally carried by a blue sign such as this one?
Correct answer: A motorist service, such as fuel, food or lodging.
Blue information signs guide motorists to services. The fuel symbol shown is one example; brown signs usually identify recreation destinations.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 14, physical PDF page 22: Motorist Service Signs. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
On a rest-area guide sign, what does this access symbol identify?
Correct answer: Facilities accessible to people with mobility impairments.
The manual identifies this as the symbol of access, showing facilities such as rest areas that are free of barriers to people with mobility impairments. The question concerns facility guidance, not parking eligibility.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 14, physical PDF page 22: Motorist Service Signs — accessible facilities. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗

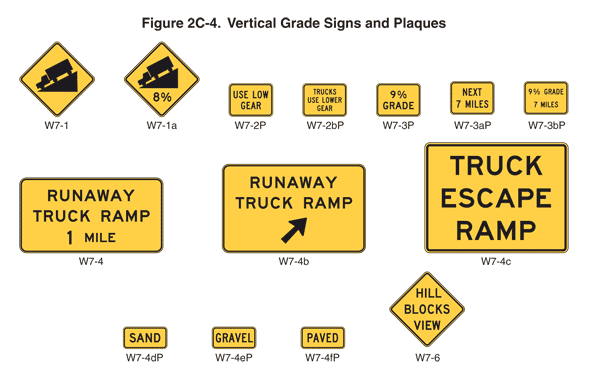

What condition does the pictured warning identify?
Correct answer: A steep downhill grade ahead.
The vehicle on a slope warns of a downgrade. Prepare for the grade and choose a safe speed before descending.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 12, physical PDF page 20: Warning Signs — Hill. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
Which measurement must a driver compare with the number on this warning?
Correct answer: The vehicle's total height, including any roof load.
This is an overhead-clearance warning. The pictured height is an example; include everything carried above the vehicle when assessing whether it can fit.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 12, physical PDF page 20: Warning Signs — Low Clearance. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A white rectangular sign reads DO NOT PASS. What does it tell you about overtaking an ordinary car here?
Correct answer: Do not overtake that car by passing here.
DO NOT PASS is a regulatory passing restriction. It is distinct from DO NOT ENTER and from a stop control.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 9, physical PDF page 17: Regulatory Signs — Do Not Pass. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A ONE WAY sign points right at the street entrance. Which direction does it allow along that street?
Correct answer: To the right, in the direction shown by the arrow.
The arrow tells you the permitted traffic direction on the one-way street. It does not make the street two-way during a gap in traffic.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 8, physical PDF page 16: Regulatory Signs — One Way. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
Below a STOP sign, an Oregon plaque says RIGHT TURN PERMITTED WITHOUT STOPPING. Which movement has the stated exception?
Correct answer: A right turn; other movements still have to stop and yield.
This supplementary plaque applies specifically to right-turning traffic. It does not cancel stop requirements for other movements or allow a driver to disregard conflicting traffic.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 8, physical PDF page 16: Regulatory Signs — Right Turn Permitted Without Stopping. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A RIGHT LANE sign shows bus and bicycle symbols above ONLY. Who may continue straight through the intersection using that transit lane?
Correct answer: Transit vehicles and people bicycling, as indicated by the sign.
Read the vehicles named by the sign. A transit-only lane is not an ordinary through lane for private cars; bicycles may continue where their symbol is included.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 8, physical PDF page 16: Regulatory Signs — Right Lane Transit Only. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A transit-only lane sign also says RIGHT TURNS PERMITTED. How may an ordinary driver use the lane to reach the next right turn?
Correct answer: Briefly enter for the turn, yielding to transit vehicles and cyclists.
The supplement allows limited entry for the indicated right-turn access. Yield to buses and people biking in the lane and merge behind them after they pass; it is not permission for continuous through travel.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 8, physical PDF page 16: Regulatory Signs — Right Turns Permitted. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A NO TURN ON RED sign faces your lane. What does it mean for your intended turn while the signal is red?
Correct answer: Wait for the signal to turn green before turning.
This sign removes permission to turn during the red indication. A clear gap alone does not override the posted restriction.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 9, physical PDF page 17: Regulatory Signs — No Turn on Red. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A reserved lane is signed HOV 2+ during the current hours. How many occupants does the sign require for an ordinary eligible car?
Correct answer: At least two people, including the driver.
The number on the HOV sign gives the minimum occupancy. Read its operating hours and other conditions rather than assuming every reserved lane uses the same threshold.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 9, physical PDF page 17: Regulatory Signs — High Occupancy Vehicle. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
A crossing warning shows both a bicycle and a walking person. Which users should you expect where the multiuse path crosses?
Correct answer: People bicycling and pedestrians.
The combined symbols identify a multiuse path crossing. Look for both kinds of users; the sign does not give motor vehicles priority over them.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 10, physical PDF page 18: Warning Signs — Multiuse Path Crossing. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
What does a yellow chevron with a black right-pointing arrowhead show at a bend?
Correct answer: The road changes direction sharply to the right at that location.
Chevrons mark a sharp curve or change in road direction at the sign. Follow the alignment at a suitable speed; this is not an added-lane sign.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 10, physical PDF page 18: Warning Signs — Chevron. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
You pass an Oregon SAFETY CORRIDOR sign. What is the reason this stretch has been identified?
Correct answer: Its history includes more fatal and serious-injury crashes than the statewide average.
A safety corridor draws attention to a higher-crash stretch of highway. The manual recommends using headlights for safety; the designation does not remove normal traffic controls.
Source: Oregon Driver Manual 2026–2027, Form735-37(1-26), printed page 13, physical PDF page 21: Route, Guide and Informational Signs — Safety Corridors. Complete page text and rendered source page read September29,2026. Independently sourced federal or original artwork, not copied from the handbook. ↗
